In the realm of modern manufacturing, Computer Numerical Control (CNC) machining has revolutionized the production of complex and precise components. Among the most prominent CNC processes are CNC Milling and CNC Turning, each offering unique capabilities to meet diverse manufacturing needs.
This article delves into the differences between CNC milling and turning, their applications, and how they contribute to precision manufacturing.
CNC milling machine vs CNC turning machine:
CNC milling and turning are a dynamic pair of modern manufacturing processes. Each of the two has unique capabilities that perfectly complement one another, allowing manufacturers to make complex parts that would be difficult to create using custom manufacturing services.
As we dig deeper into the world of CNC machining, it is critical to deconstruct these machining processes and investigate their unique contrasts. So, let us set out on an adventure to make the world of computer numerical control (CNC) machining accessible to everyone.
The Marvel of CNC Milling: Precision Craftsmanship in Motion
What Is CNC Milling?
CNC Milling is a subtractive manufacturing process where a rotating cutting tool removes material from a stationary workpiece. This process is ideal for creating flat or sculpted surfaces, intricate geometries, and complex parts. CNC milling machines operate along multiple axes (X, Y, Z), allowing for high precision and versatility.
Types of milling machines:
The CNC milling machine comes in various types, each with specific features and applications. Vertical machining centers and horizontal machining centers are common types used in CNC milling operations.
Vertical Machining Center (VMC) in a CNC mill:
Vertical Axis: The cutting tool moves vertically in relation to the workpiece.
Z Axis: The Z axis is vertical, moving the spindle up and down.
Orientation: The workpiece is typically clamped on a table that moves along the X and Y axes. Ideal for tasks like face milling and drilling.
Horizontal Machining Center (HMC) in a CNC mill:
Vertical Axis: The cutting tool moves horizontally in relation to the workpiece.
Z Axis: The Z axis is parallel to the horizontal plane, moving the spindle back and forth.
Orientation: The workpiece is usually mounted on a rotary table, and the spindle can approach it from different angles. Suitable for tasks requiring multiple-sided machining.
A milling cutter is used to remove material from a workpiece’s flat surface as it moves quickly along the x, y, and z axes or more. Computer machining instructions guide it. Unlike traditional milling, which requires continual manual modifications, it enables a seamless and automated operation. The machine makes calculated passes, revealing the desired shape with precision.
Key Milling Operations:
CNC mills encompass various milling operations occurring on the machine bed. They include form milling, vertical milling, horizontal milling, angular milling, gang milling, surface milling, face milling, slab milling, straddle milling, and plain milling.
Form milling
Form milling is a milling process that involves cutting complex shapes and contours into a workpiece using a specially shaped cutter. It is commonly used for producing intricate components with non-linear or custom geometries.
Angular milling
Angular milling is a type of milling operation where the cutter is set at an angle to the workpiece’s surface. Angular milling is employed to create angular features, bevels, or chamfers on the workpiece.

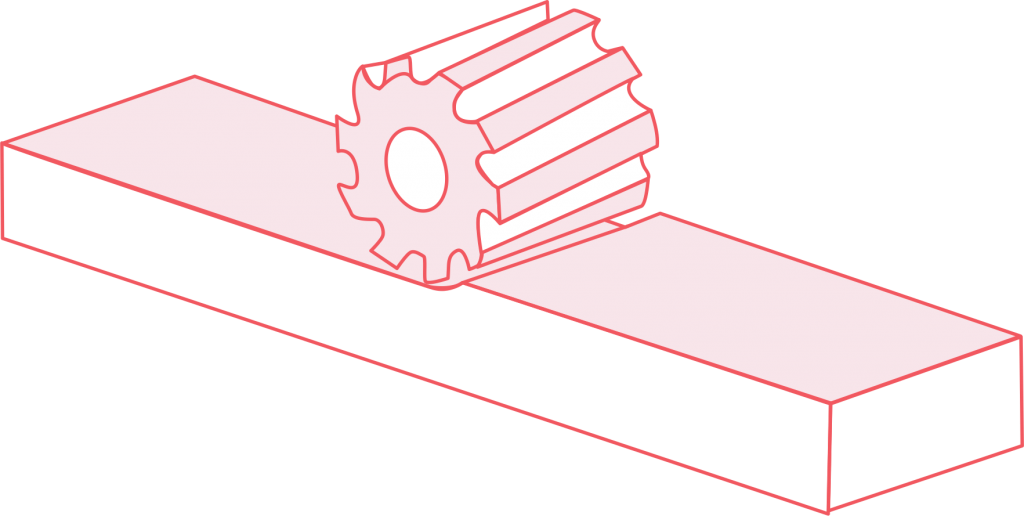

Plain milling
Plain milling is a basic milling operation where a flat, horizontal surface is created on the workpiece using milling machines. The cutter moves parallel to the surface, producing a straightforward and flat result.
Gang milling
Gang milling is a milling operation where multiple cutters are mounted on the same arbor in a CNC mill, allowing simultaneous cutting of multiple surfaces on the workpiece for increased efficiency.
Face milling
Face milling is a specific milling operation that involves the removal of material from the flat surface of a workpiece. Face milling is a crucial process used to create smooth and flat surfaces on a workpiece. The milling cutter, equipped with multiple cutting teeth, engages with the workpiece and removes material in a perpendicular direction to the workpiece’s surface.
Advantages of CNC Milling:
- Versatility: Capable of producing a wide range of shapes and sizes.
- Precision: Achieves tight tolerances and smooth finishes.
- Multi-Axis Capability: Enables complex machining with 3, 4, or 5-axis machines.
What Is CNC Turning?
CNC Turning involves rotating a workpiece while a stationary cutting tool shapes it. This process is primarily used for creating cylindrical or conical parts like shafts, bolts, and tubes. The workpiece rotates around a central axis, and the tool moves linearly to remove material.
Types of turning machines:
- Standard CNC Lathe: Ideal for basic turning operations.
- CNC Swiss Turning Machine: Incorporates live tooling for enhanced capabilities.
- Horizontal Turning Center: Suitable for larger workpieces.
Key Turning Operations:
- Facing: Creates flat surfaces on the ends of cylindrical parts.
- Boring: Enlarges or refines internal diameters.
- Threading: Produces screw threads on cylindrical surfaces.
Advantages of CNC Turning:
- Efficiency: Faster production for cylindrical parts.
- Rotational Symmetry: Perfect for components requiring circular shapes.
- Automation: Reduces manual intervention, ensuring consistency.
CNC Milling vs CNC Turning: Key Differences
Aspect
CNC Milling
CNC Turning
Operation
Rotating tool removes material from a stationary workpiece.
Rotating workpiece is shaped by a stationary tool.
Resulting Shapes
Flat or sculpted surfaces, complex geometries.
Cylindrical or conical parts with rotational symmetry.
Tooling
Multi-point cutting tools for versatile machining.
Single-point turning tool for continuous engagement.
Machine Type
CNC milling machine (vertical or horizontal).
CNC lathe or turning center.
Contact & Movement
Intermittent cutting with a rotating tool.
Continuous contact between tool and workpiece.
Applications
Ideal for intricate parts, molds, and prototypes.
Best for shafts, bolts, and cylindrical components.
Choosing Between CNC Milling and Turning
The choice between CNC milling and turning depends on the specific requirements of your project:
- CNC Milling is preferred for complex shapes, flat surfaces, and multi-axis machining.
- CNC Turning excels in producing cylindrical or conical parts with rotational symmetry.
For projects requiring both processes, CNC turning-milling compound centers offer a hybrid solution, combining the strengths of both technologies.
Applications of CNC Milling and Turning
CNC Milling Applications:
- Aerospace: Manufacturing turbine blades and structural components.
- Automotive: Producing engine blocks and transmission parts.
- Medical: Crafting surgical instruments and implants.
- Prototyping: Rapidly creating complex prototypes.
CNC Turning Applications:
- Automotive: Producing axles, shafts, and bushings.
- Electronics: Manufacturing connectors and housings.
- Industrial: Crafting valves, fittings, and fasteners.
Conclusion: Harnessing the Power of CNC Machining
Both CNC milling and CNC turning are indispensable in modern manufacturing, offering precision, efficiency, and versatility. Understanding their differences and applications allows manufacturers.
