Core and cavity are crucial for injection molding design, one of the most widely used methods of producing plastic parts. A moulding cavity helps create intricate design features inside the part, which cannot often be machined using standard machining techniques.
Mold design reduces defects, optimizes the ejection of the workpiece for high production efficiency and offers uniform cooling.
In this article, you’ll learn about mold cavity, the function of core in the injection molding process, and design tips to help you get started with your project.

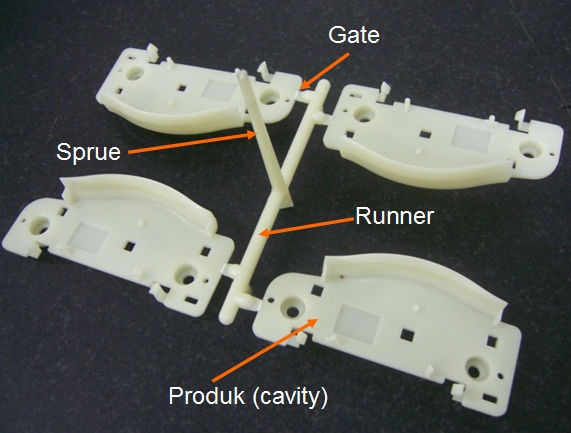

What are mold cavity and mold core?
The cavity is one-half of the mold used when making a plastic product. It is a hollow space into which molten plastic is injected to form the desired shape of the final product.
The idea of mold cavities developed from the need to produce plastic parts with complex material characteristics that traditional methods could not achieve. Their use dates back to early manufacturing, when one-cavity molds created materials like clay, plastic, or glass.
In the 20th century, mold cavities became more sophisticated when injection molding and plastic parts became available. As a result, more complex parts needed to be developed according to production requirements.
Mold cavity is the foundation of injection molding, enabling the production of complex, high-quality parts with consistent accuracy. Its design and construction require careful planning and execution to ensure optimal performance and part quality.
Understanding Core and Molding Cavity
The core and cavity are two mold halves that are tightly combined to form the mold’s shape and structure. While the cavity forms the part’s external features, the core creates the internal geometries, such as holes, threads, or undercuts. Together, they define the plastic part’s complete structure.
As a result, the mold cavity and mold part serve as two halves of the plastic part. Depending on the requirements of mass production, you can improve efficiency by creating single-cavity or multi-cavity molds.
The example of a plastic bottle helps explain mold core and cavity design. The external plastic half is the surface cavity, while the inner hollow part is the core.
How Do Mold Core and Cavity Work Together?
The mold core and cavity are two halves of an injection mold that work together to shape a plastic part. During injection molding, molten plastic is injected into the closed space formed by the core and cavity.
Here’s how they work together step-by-step:
Mold Closing: The core and cavity form a sealed space.
Injection: Molten plastic is injected into the cavity through a gate, filling the space around the core.
Cooling: The plastic cools and solidifies, taking on the shape defined by the core and cavity. Conformal cooling channels can also improve production efficiency.
Mold Opening: The core is removed from the cavity, but the solidified part remains attached.
Ejection: The part is ejected from the core using an ejection system, such as ejector pins or sleeves.
The core and cavity placement during the injection molding process must also be noted. Cavity remains stationary, while the core moves to facilitate ejection.
Additionally, to ensure that the two mold halves are secured tightly, mating surfaces are areas on both the core and the cavity that help align the two halves for proper mold closure and alignment.
Differences Between Mold Core and Cavity
While the core and cavity create a part, they have distinct roles, characteristics, and requirements. Below is a table summarizing their key differences:
As a result, the core and cavity work together to ensure that the desired part is formed accurately and released without damage.
Types of Molds: Single Cavity vs Multi Cavity Molds
In injection molding, the type of mold used will significantly impact production efficiency, plastic part quality, and the high cost of the mold. The two most common mold types are single cavity and multi cavity molds. Let’s explore both mold types in detail.
Single Cavity Mold
A single-cavity mold consists of one core and cavity, producing a single part in one cycle. This new mold type prioritizes high-quality parts over mass production.
Advantages of Single-Cavity Molds
Single cavity molds offer plenty of benefits because of their simple design. Some of them are:
Low initial investment
The tooling costs for single-cavity molds are lower than those for multi-cavity molds. As a result, single-cavity molds are a better alternative for companies that need to examine new designs or handle unpredictable market requirements.
For instance, companies that create seven different product parts can improve each design with one cavity mold before starting large-scale production.
Design Adjustments
Changing the design, if required, is faster to do with a single-cavity mold because only one cavity needs to be modified. The multirevision process is helpful in prototyping, where products often need multiple design changes.
For example, a new device can receive its required structural change through a single cavity mold which operates independently from the overall setup.
Lesser Downtime
One defect in the system affects only one part while all other mold areas remain unaffected. The process remains untouched because defects affect only a single part.
The single-cavity system protects your manufacturing process, as defective parts do not require time-consuming repairs to multiple cavities.

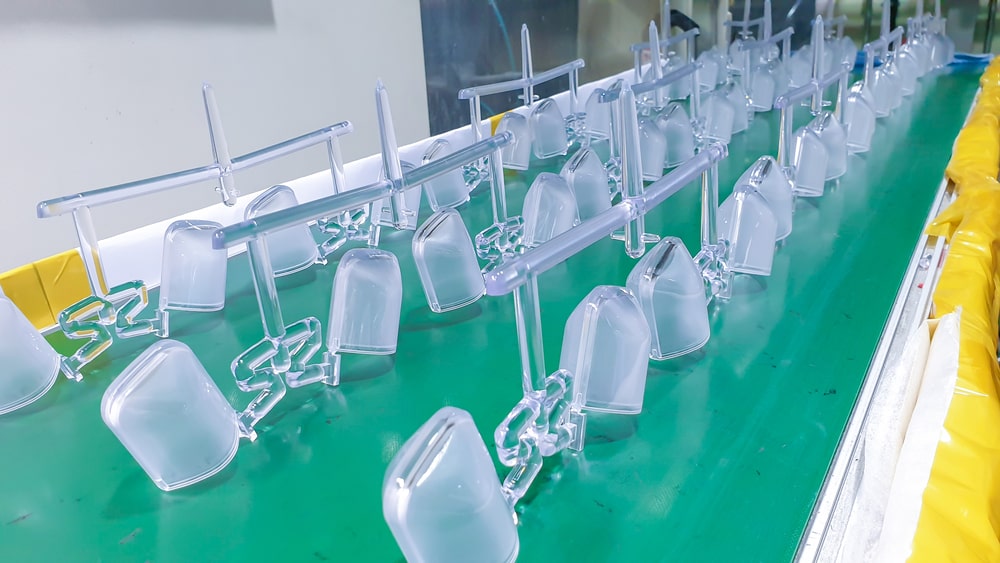

Multi-Cavity Mold
A multi-cavity mold produces multiple parts per injection cycle. It has various cores and cavities in a single mold, allowing for high production rates. Another type of mold with various cores and cavities is a family mold, which combines different part numbers into one mold base.
Advantages of Multi-cavity Mold
A multi-cavity mold offers many advantages. Some of them include:
High efficiency in Production
Multi-cavity injection molding allows the production of multiple parts at once, decreasing the time needed to create large quantities of products. For example, when a mold contains five cavities, one production cycle can generate five bottle caps in one operation.
Lower Cost Per Part
A multi-cavity mold costs more than a single-cavity mold, but the price per unit decreases because of increased production volumes. Thus, this material qualifies for mass production because it offers affordable prices per part.
Quicker orders
These molds help produce numerous parts during each cycle, which is beneficial when your production order reaches high volumes. A multistage mold operator delivers superior speed advantages, particularly to consumer goods manufacturers requiring fast plastic product delivery.
Choosing the right material for Mold Cores and Cavities
Here are some commonly used material characteristics to help you choose the core and cavity material.
Tool Steel (P20, H13)
Tool steel is tough, wear-resistant, and durable, making it a good choice for high-volume production or manufacturing complex parts. It also has a long lifespan and good polish. However, it is expensive and requires longer lead times for machining.
Stainless Steel
Stainless steel is strong, has good corrosion resistance, and is durable. It finds good use in medical parts requiring good hygiene. It can resist rust and chemical corrosion. However, it’s expensive and machining is complex.
Aluminum
Aluminum is lightweight, has good thermal conductivity, and is easy to machine. Thus, it can be used for prototyping or low-volume production. It’s also cheap and can be machined and cooled rapidly. However, this leads to a shorter lifespan.
Beryllium Copper
Beryllium copper is the perfect choice for molds requiring fast cooling cycles because it has excellent thermal conductivity and wear resistance. It improves cooling efficiency and is durable; however, it is expensive and toxic during machining.
Carbide
Carbide is extremely hard and resistant to wear so that it can be used in high-wear applications and in abrasive plastic parts. Its advantages are that it has a long lifespan and can efficiently handle abrasive materials. However, it is also expensive and can break easily.
Considering all these characteristics, you must choose the right material for your mold core and cavity for manufacturing. This material determines the mold’s lifespan and price.
For instance, if you’re making a new product that does not require high production, you can use tool steel to make a mold that produces thousands of plastic gears and aluminum.
Cooling Channels and Their Impact on Mold Performance
Manufacturing efficiency depends heavily on cooling channels because they determine how parts cool during production, the production cycle’s speed, and the final part’s quality. When cooling channels align their design with the plastic material, they substantially reduce defects such as warping and sink marks.
Optimal cooling channels reduce power usage by enhancing thermal processing while decreasing cooling time. These channels also keep the mold at optimal temperatures, extending its lifespan while reducing operating expenditures.
Design Principles for Cooling Channels
Uniform Cooling
The cooling channels must be evenly distributed throughout their perimeter to ensure uniform heat removal from the core and cavity. In plastic cup molds, the cooling channels must be oriented against the cup walls to ensure even cooling and avoid distortion.
Proximity to Mold Surface
Channels must be placed close to the mold surface while preserving structural stability. Cooling efficiency and structural strength must be balanced when placing channels near the mold surface.
Channel Diameter and Layout
Larger-diameter channels allow for better coolant flow but may require more space. To ensure consistent cooling, channels should follow the part’s geometry.
Coolant Flow Rate
The flow rate of the coolant (usually water) must be optimized to achieve efficient heat transfer without causing turbulence or pressure drops.
Baffles and Bubbler Tubes:
For complex geometries, baffles (internal dividers) or bubbler tubes (internal cooling tubes) can direct coolant flow to hard-to-reach areas.
How to Optimize Cooling Channels
There are several ways to improve the usage of cooling channels. Here are some of them:
Use Mold Flow Analysis:
Simulation software can predict how the molten plastic will cool and identify areas that require better cooling. Mold flow analysis instantly detects hotter areas in plastic gear molds, helping to improve the cooling channel design.
Balance Cooling with Ejection:
Ensure that cooling channels do not interfere with ejector pins or other ejection mechanisms. For example, in a mold for a plastic housing, cooling channels should be designed around the locations of ejector pins.
Incorporate Conformal Cooling:
Conformal cooling channels, which are created using 3D printing methods, mimic the shape of the part to generate equal cooling distributions.
A complex medical device mold performs better with conformal cooling because it shortens cycle durations and enhances part accuracy.
Optimizing Mold Design for Injection Molding
Mold optimization remains essential because it achieves quality components, lowers manufacturing expenses, and improves system efficiency. An effective mold design results in fewer frequent defects, quicker production cycles, and steady operation during its operational lifetime.
This section will discuss the strategies for achieving optimal mold design through three main points: cycle time reduction, manufacturing design principles, and portable ejector tools.
Reducing Cycle Time
A single injection process from injection to cooling and ending with ejection constitutes the cycle time measurement. Reducing cycle time helps factories maintain more incredible operational speed while decreasing expenses. Here’s how to achieve it:
Optimize Cooling Channels
The design of effective cooling channels speeds up the solidification process of plastic. Implementing conformal cooling together with properly positioned channels helps reduce cooling periods effectively. The mold design of plastic containers helps decrease cycle time when cooling channels are placed near thicker structural components.
Minimize Wall Thickness
The cooling process occurs more rapidly through thin wall dimensions than thick wall structures. Parts should have uniformly distributed wall thickness to create uniform cooling and accelerate the production cycle. Plastic housing can achieve equivalent strength by transforming its unnecessary thick walls into thinner versions.
Use High-Performance Materials
Beryllium copper has high thermal conductivity, which boosts cooling performance. Incorporating beryllium copper inserts in slender-part mold applications decreases production time by 20%.
Automate Ejection
Automated ejection systems like robotic arms can speed up part removal and reduce cycle time.
Role of ejector pins
After the mold reaches cooling temperature, ejector pins assist in removing the solidified part from its cavity. An optimal placement and design of ejector pins determine the mold functionality and the quality of the produced parts.
Placement
Ejector pins should be placed in areas strong enough to resist ejection forces that will not harm the final part. The plastic gear mold implements ejector pins at the hub of the gear instead of the teeth to protect against part deformations.
Size and Quantity:
Several ejector pins should be implemented throughout the surface to distribute the force equally across the mold. The number of ejector pins must increase in proportion to the part size. The ejection process of a large plastic panel needs 10 to 12 properly spaced ejector pins to function smoothly.
Surface Finish:
The surface of ejector pins should remain smooth to avoid leaving markings or scratches on the finished part. Mold producers use polished ejector pins for smartphone cases because of their cosmetic value.
Alignment:
Out-of-alignment ejector pins can damage parts or the mold surfaces. Accurate mold component alignment needs to be achieved during the mold assembly process.
Managing Mold Costs: Balancing Quality and Budget
Cost management in mold production must balance high product quality standards with financial constraints. Because injection molding involves high investment costs, mold cost administration is essential for profitability and quality maintenance.
Optimizing quality while staying within budget requires thoughtful planning, material selection, and design revision. Here are some methods to minimize mold expenses, essential construction and maintenance factors, and strategies for accessing valuable information to maximize returns.
Prototype First
Prototyping with cheaper materials like aluminum can help test part design and functionality before investing in a production mold. For example, an aluminum prototype mold can help identify design flaws before committing to a costly steel mold.
Prioritize Critical Features
Focus on high-precision areas of the mold that directly impact part quality, while simplifying less critical areas to save costs. For example, in a plastic housing mold, prioritize the fit and finish of mating surfaces while simplifying internal features.
Leverage Technology
Advanced technologies like 3D printing for conformal cooling or rapid prototyping can be used to reduce costs and lead times. For example, 3D-printed conformal cooling channels can improve efficiency without significantly increasing costs.
Partner with Experienced Manufacturers:
Work with mold manufacturers who have expertise in cost-effective design and production. Their experience can help you avoid costly mistakes. For example, a manufacturer familiar with multi-cavity molds can suggest design optimizations to reduce costs.
Optimizing mold design for lower costs is also a factor that affects construction and maintenance.
Quality Control in Mold Design
Quality control is critical to mold design and manufacturing, ensuring the final product meets the required specifications and performance standards. A well-designed mold produces high-quality parts, minimizes defects, reduces waste, and enhances production efficiency. In this section, we’ll explore the importance of quality control, methods for testing and inspection, and strategies for maintaining mold quality throughout its lifecycle.
Importance of Quality Control in Mold Design
Ensuring Part Accuracy:
Quality control ensures that the mold produces parts with precise dimensions, tolerances, and surface finishes. For example, molds for medical devices must have tight tolerances to ensure proper functionality.
Reducing Defects:
Quality control minimizes defects like warping, sink marks, flash, and incomplete filling. For example, mold with inadequate venting can cause air traps, leading to incomplete filling and defective parts.
Extending Mold Life:
Regular inspection and maintenance prevent wear and damage, extending the mold’s lifespan. Detecting and repairing minor cracks early can prevent catastrophic mold failure.
Cost Savings:
Quality control reduces waste, rework, and downtime, lowering production costs. Identifying and fixing design flaws during prototyping prevents costly changes during production.
Methods for Testing and Inspection
Here are some methods for testing and inspection of mold.
Dimensional Inspection:
Use precision tools like coordinate measuring machines (CMM) or micrometers to verify that the mold and parts meet design specifications. For example, you can measure the diameter of a plastic gear to ensure it matches the design dimensions.
Mold Flow Analysis:
Simulate the flow of molten plastic in the mold to identify potential issues such as air traps, weld lines, or uneven cooling. Mold flow analysis can also reveal areas where cooling channels need adjustment to prevent warping.
Surface Finish Inspection:
Inspect the mold’s surface finish to ensure it meets the required standards for part appearance. For example, a surface roughness tester can verify that a polished cavity produces a glossy finish.
Pressure and Temperature Testing:
Test the mold under actual production conditions to withstand the required pressures and temperatures. You can run a test cycle with molten plastic to check for leaks, flash, or other defects.
Visual Inspection:
Regularly inspect the mold for signs of wear, damage, or contamination. Look for scratches, dents, or rust on the surface that could affect part quality.
By applying these insights, you can create molds that meet your production needs and deliver high-quality parts efficiently and cost-effectively. Whether you’re designing a mold for prototyping or high-volume production, the key lies in careful planning, attention to detail, and a commitment to continuous improvement.
