Plastic is used in nearly every product we touch. From food packaging and household items to car parts and hospital equipment, plastics shape modern life. But behind every product is a plastic forming process carefully chosen to suit the part’s design, strength, budget, and the requirements set by plastic manufacturers.
In this guide, we explore the most common plastic manufacturing processes, the materials involved, and how to choose the right method for your product.
What Is Plastic Forming?
Plastic forming is the process of shaping raw plastic materials into usable products. This can be done through heating, injecting, blowing, compressing, extruding, or even printing the plastic into the desired shape.
Different plastic manufacturing processes serve different purposes. Some are ideal for mass production of identical parts. Others are better for smaller runs, complex designs, or prototyping.
The goal is always the same: to produce high quality parts that are functional, durable, and cost-effective.
Types of Plastic Materials
Thermoplastics
Thermoplastic materials are the most commonly used in plastics manufacturing. They soften when heated, often with the help of a curing agent, and harden when cooled, allowing them to be reshaped multiple times.
Examples:
Polyethylene (PE)
Polypropylene (PP)
Polystyrene (PS)
Polyvinyl chloride (PVC)
Acrylonitrile butadiene styrene (ABS)
These are widely used to produce packaging, containers, toys, automotive trims, and more.
Thermosetting Plastics
Thermosetting plastics cure permanently once heated. They undergo a chemical reaction during forming that locks them into their final shape.
Examples:
Epoxy
Phenolic resin
Melamine
These are commonly used in electronics, aerospace, and automotive applications where strength and heat resistance are required.
Biodegradable Plastics
With rising environmental awareness, biodegradable plastics like polylactic acid (PLA) are growing in demand. These break down naturally and are often used in compostable packaging and sustainable plastic production.
The Role of Material Selection
Each plastic forming method performs best with specific raw materials.
Here are some popular examples:
| Materials | Used In |
| Polyvinyl chloride (PVC) | Polyvinyl chloride (PVC) |
| Acrylonitrile butadiene styrene (ABS) | Helmets, tool housings, LEGO bricks |
| Polypropylene (PP) | Hinged lids, automotive parts, medical trays |
| Polylactic acid (PLA) | Biodegradable packaging, 3D printing, agricultural films |
| Polycarbonate (PC) | Bulletproof glass, eyeglass lenses, lighting covers |
| Polyethylene (PE) | Bottles, plastic bags, toys |
Material choice impacts not only the plastic forming process used but also product performance, recyclability, and cost.
Top 10 Plastic Forming Methods Explained
Let’s explore the most common manufacturing processes for plastics, each now expanded with greater detail and keyword-rich insight.
1. Plastic Injection Molding
Plastic injection molding is one of the most important plastic manufacturing processes in modern industry. It works by melting plastic pellets into molten plastic, which is then forced into a mold cavity under high pressure. Once the plastic cools, the mold opens and the part is ejected.
This molding process is highly repeatable, offering excellent quality control, especially when producing plastic parts in bulk. It’s ideal for everything from medical devices and electronics to automotive components and consumer goods.
The manufacturing method supports a wide range of plastic materials, including acrylonitrile butadiene styrene (ABS), polyvinyl chloride (PVC), and thermoplastic materials. It also works well for parts with complex internal features and multiple finishes.
Despite high initial costs for mold creation and mold preparation, the process becomes highly economical for mass production. It supports over molding, multi-shot molding, and other molding techniques that add extra design flexibility.
Plastic injection molding is ideal when your goal is to produce high quality parts that must meet tight functional and aesthetic requirements with minimal variation.
2. Blow Molding
Blow molding is a family of plastic manufacturing processes used to create hollow plastic products like bottles, tanks, and plastic tubing. In this manufacturing process, a heated plastic parison is placed in a mold, then expanded using pressurized air to take on the desired shape.
There are three types of blow molding:
Extrusion blow molding is excellent for high-speed production of thin walled, uniform containers.
Injection blow molding creates more refined shapes with improved surface finishes and tighter tolerances.
Stretch blow molding uses biaxial stretching to increase clarity and impact resistance.
Each of these has its own benefits. For instance, extrusion blow molding is preferred for industrial jugs, while injection blow molding is better for pharmaceutical containers.
This process uses common plastic materials like polyvinyl chloride, HDPE, and acrylonitrile butadiene styrene ABS, and is often used to produce lightweight, durable, and affordable packaging.
Because tooling is simpler than with plastic injection molding, tooling costs are lower, making this method attractive for high-volume packaging production.
3. Reaction Injection Molding (RIM)
Reaction injection molding (RIM) is a specialised plastic manufacturing process where two liquid reactants are mixed and injected into a mold. Inside the mold, a chemical reaction takes place, which leads to foaming, curing, and hardening.
RIM is particularly useful for parts that must be lightweight, stiff, and dimensionally stable. It’s widely used to produce dashboards, bumpers, and enclosures in automotive and telecom sectors.
Unlike injection molding, which requires melting solid plastic pellets, RIM starts with low-viscosity liquids. These liquids flow easily into molds with complex geometries and complex internal features. As a result, you can create hollow plastic parts or thicker components with intricate shapes.
Materials often used in this molding process include polyurethanes and hybrid thermosets. Because the process involves heating and a curing stage, it’s ideal for thermosetting plastics.
RIM is efficient, though cycle times are longer, and tooling costs can vary depending on mold size and finish. Its ability to deliver low-density, impact-resistant parts makes it a standout in the list of plastic manufacturing processes.
4. Rotational Molding
Rotational molding, or roto molding, is a plastic forming process ideal for making large, seamless, hollow plastic products like tanks, playground equipment, and large containers, which can also be thin walled for specific application .
The process begins with powdered plastic being loaded into a hollow mold. The mold is then rotated on multiple axes while being heated, causing the plastic powder to melt and coat the inside of the mold evenly. After cooling, the mold opens, and the part is released.
This manufacturing method is great for creating plastic parts that require uniform wall thickness and strength without weld lines. It’s often used to produce parts in industries such as agriculture, transportation, and waste management.
Common plastic materials used in rotational molding include polyvinyl chloride (PVC) and polyethylene. The absence of pressure during the process keeps tooling costs low, although the process is considered labor intensive due to slow cycle times.
This process is ideal when you need to create hollow plastic parts with tough exteriors that can withstand outdoor environments and high impact.
5. Compression Molding
Compression molding is a simple yet effective plastic forming technique. A preheated charge of raw material—often a sheet or pellet—is placed into an open mold. The mold is closed, and pressure is applied to squeeze the plastic into its final shape.
This molding process is especially good for thermosetting plastics that require a heat and pressure cure, like epoxy or phenolic resins. It’s widely used to produce electrical insulators, handles, and panels.
One of the major advantages of compression molding is its cost-efficiency. Tooling costs are lower compared to injection molding, and it wastes less material than subtractive manufacturing processes for plastics like CNC machining.
It can also be used with acrylonitrile butadiene styrene ABS and other reinforced plastics for enhanced durability. While not suitable for very fine detailing, it excels at forming large, sturdy, and weather-resistant parts with relatively low overhead.
This process supports functional and aesthetic requirements where surface detail is less critical, but strength and material efficiency are priorities.
6. Thermoforming & Vacuum Forming
Thermoforming is a versatile plastic forming process that involves heating a plastic sheet until soft, then pressing or pulling it over a mold. One common variant is vacuum forming, where vacuum pressure draws the sheet tightly over the mold.
These manufacturing methods are ideal for large, thin-walled parts with simple geometries. They are widely used to produce product trays, signs, and appliance housings. Because the process involves heating only the surface layer, it’s energy efficient and quick.
Tooling can be made from wood, epoxy, or aluminum, keeping tooling costs low. This makes thermoforming a good fit for prototypes and medium-volume runs.
Materials like polyvinyl chloride PVC, polystyrene, and PET are often used. Although vacuum forming cannot match the detail of injection molding, it is great for achieving fast, low-cost results.
Post-forming operations like CNC machining can be used to trim and shape parts precisely. Together, these steps deliver high-value plastic products at a relatively low production cost.
7. Plastic Extrusion

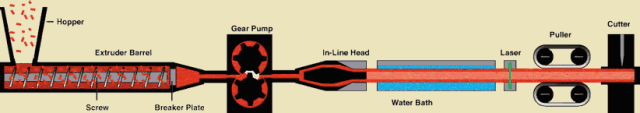

Plastic extrusion is a continuous process where heated plastic pellets are melted into molten plastic and forced through a die to create a continuous shape. It’s one of the most efficient plastic forming techniques for long parts with uniform cross-sections.
This manufacturing method is widely used to produce piping, weather-stripping, cable insulation, and sheet materials, all of which are essential plastic products . Common materials include polyvinyl chloride, polyethylene, and thermoplastic materials like ABS.
Plastic extrusion can be enhanced with co-extrusion, where multiple layers or materials are combined for added function. For example, flexible tubing may include inner layers for chemical resistance and outer layers for strength.
One of the biggest benefits of extrusion is speed. Once set up, the machine runs continuously, offering exceptional productivity for mass production with minimal waste.
Although not suitable for complex 3D parts, extrusion plays a key role in plastics manufacturing, especially where shape consistency, strength, and cost-efficiency are important.
8. Vacuum Casting
Vacuum casting is a flexible, low-volume plastic forming process ideal for prototypes and short-run parts. It begins with a master part—often made via 3D printing—which is used to create a silicone mold.
Liquid resins are poured into the mold under vacuum pressure to remove air bubbles and ensure smooth, detailed surfaces. The result is a part that closely matches the final shape and feel of an injection-molded component.
Vacuum casting is often used to produce fit models, demo units, and pre-production batches. It works with rigid, flexible, and transparent materials, and can simulate common plastic materials like ABS, PP, and TPU.
Because tooling costs are minimal and lead times are short, vacuum casting is great for functional testing and market feedback. It allows engineers to evaluate and refine designs before committing to higher-cost plastic injection molding, ultimately optimizing plastic production .
9. 3D Printing
3D printing is a digital plastic manufacturing process that builds parts layer by layer from a CAD model. Also known as additive manufacturing, it eliminates the need for molds, making it perfect for creating plastic parts quickly and cost-effectively.
This process is highly flexible, supporting complex designs, internal channels, and customized shapes. It works with thermoplastic materials like PLA, ABS, and nylon, and with photopolymer resins for fine detail.
3D printing is commonly used to produce prototypes, fixtures, small-batch parts, and even medical implants. Because it is not a continuous process, it’s less efficient for high-volume production but ideal for one-offs and revisions.
Popular technologies include fused deposition modeling (FDM), stereolithography (SLA), and selective laser sintering (SLS). 3D printing also supports mold preparation, helping speed up the tooling phase of other plastic manufacturing processes.
10. CNC Machining
CNC machining is a subtractive manufacturing process used for shaping solid blocks of plastic. It offers unmatched precision, surface finish, and repeatability, especially for tight-tolerance applications.
While not a plastic forming process in the traditional sense, CNC machining is vital in plastics manufacturing for prototyping, post-processing, or producing geometries that can’t be molded.
It’s widely used to produce end-use parts in medical, aerospace, and electronics industries. It works well with ABS, nylon, polycarbonate, and polyvinyl chloride, among others.
CNC is often paired with other manufacturing processes for plastics, such as trimming thermoformed parts or modifying injection-molded components. Though labor intensive, its flexibility and precision make it a key part of the common manufacturing processes for plastic.
Top 10 Plastic Forming Methods Explained
| Process | Speed | Cost | Ideal For |
| Injection Molding | Very High | High | High-volume precision parts |
| Blow Molding | High | Medium | Bottles, containers, hollow parts |
| Reaction Injection | Medium | Medium | Lightweight automotive panels |
| Rotational Molding | Low | Low | Large outdoor containers |
| Compression Molding | Medium | Low | Durable, heat-resistant parts |
| Thermoforming | High | Low | Trays, panels, packaging |
| Plastic Extrusion | Very High | Medium | Pipes, tubing, continuous profiles |
| Vacuum Casting | Low | Low | Prototypes, low-run production |
| 3D Printing | Low | Low | Rapid prototyping |
| CNC Machining | Medium | High | Precision end-use parts |
Sustainability in Plastic Manufacturing
Sustainability is no longer optional. Today’s plastic manufacturers are exploring synergies with other manufacturing processes to enhance sustainability.
Using recycled plastic materials
Reducing plastic waste with better design
Investing in biodegradable plastics like PLA
Embracing upcycling and waste management strategies
Lowering greenhouse gas emissions through automation
The goal is to meet demand while supporting environmental responsibility.
How to Choose the Right Plastic Manufacturing Process
When deciding on the right plastic manufacturing process, consider:
Volume: Low runs? Go for 3D printing or vacuum casting. High runs? Choose injection molding.
Complexity: Simple parts work well with thermoforming. Detailed designs need injection or CNC machining.
Material: For reusability, stick with thermoplastics. For permanence, use thermosetting plastics.
Surface finish: Injection blow molding and vacuum casting provide excellent surface quality.
Budget: For lower tooling costs, consider compression molding, vacuum forming, or extrusion.
Design goals: If you need consistent wall thickness, go with rotational molding.
Final Thoughts
The plastic forming process is more than a technical step. It’s a strategic decision that affects your product’s function, appearance, cost, and environmental impact.
Whether you need to create hollow plastic parts, manufacture intricate housings, or build long lengths of tubing, there’s a plastic forming method that fits your project. From molding techniques like injection molding and rotational molding, to manufacturing methods such as CNC machining and plastic extrusion, your choice determines success.
Work with experienced partners who can help you balance raw material selection, tooling costs, and production volume to produce high quality parts with precision.
