From car parts to medical devices, plastic injection molding covers a wide range of products. It is a process used in manufacturing to produce complex parts with a high volume.
This article covers the advantages and disadvantages of injection molding, focusing on high repeatability and efficiency in great detail and offers practical insights for your business.
It will cover precision, speed, cost and design limits with examples for implementation, as well as technical aspects such as cooling lines, injection pressure, and mold temperature that play a vital role in its sucess.
What is Injection Molding?
Injection molding creates precise plastic materials for many industries. Here’s a short overview of the injection molding process:
Manufacturers use an injection unit with a reciprocating screw to melt plastic pellets using heater bands.
The molten plastic flows into a custom mold under high injection pressure. Custom molds often made of steel or beryllium copper for durability and heat transfer.
They can inject the molten material into a custom mold, and cool it to form a solid part. The injection speed is controlled by machine’s reciprocating screw.
You can use hoppers, barrels, and nozzles to hold the part.
The mold is usually made of steel or aluminum and shapes the plastic into detailed designs such as toy figurines or phone cases. Then, you will allow the plastic part to cool.
The mold’s parting line, where halves meet, shapes the part’s final look.
Controlled mold temperature and holes drilled in cooling lines ensure even cooling, while holding pressure maintains quality.
The machine then ejects the plastic part using ejector pins and you can either use it or do some minor finishing touches.
Injection molding process is suitable if you want to mass production of plastic parts by using materials like ABS or polypropylene.
So, injection molding delivers uniform plastic parts with high precision. for medical, consumer goods and automotive industries.
Advantages Of Plastic Injection Molding
Plastic injection molding is a great asset for industries when it comes to producing a high volume of identical products. It comes with a great array of advantages:
High Precision for Complex Parts
Injection molding is the process of manufacturing plastic parts with tight tolerances to create the final part. An injection with high pressure fills the mold cavity (hollow space within a mold) with molten plastic or metal to form the desired shape. Shapes may include gear teeth or thin device casings.
For example, a medical supplier can produce dimensionally stable syringe barrels for reliable performance. You can partner with a mold designer to include features like snap-fit joints, ensuring flawless precision.
This strength is great for projects needing identical and complex parts in bulk.
Fast Cycle Times
The process completes cycles in 10 to 120 seconds, resulting in a high output.
Multiple cavity molds create multiple parts at once enhancing work efficiency. Even complex geometries mold quickly, supporting large-scale projects.
Additionally, using software for work reduces downtime of operations. It is a one-time investment that speeds up the whole process. This speed delivers hundreds of parts per hour, which is perfect for urgent demands.
Low Cost per Part
When you produce parts in high volume, the cost per part is lower. Automation reduces the need for labor, making the whole process more affordable.
For example, steel molds, last over 100,000 cycles while aluminum molds lower costs for medium runs, around 10,000 parts. As a result, injection molding is cost-effective and becomes budget-friendly for large-scale projects.
Material Selection
Injection molding can be done via a wide range of engineered materials, around 25000 of them. These include ABS, polyethylene, and silicones. The manufacturing process uses plastics keeping their properties in mind.
For example, they use thermoplastic materials because they can be heated and cooled repeatedly without undergoing a change in chemical properties.
Manufacturers also use thermosets because they have great strength, dimensional stability and higher temperature resistance. Resins are also used because they are the primary raw material that is shaped into final parts.
This variety in material selection ensures that injection molded parts meet unique project needs.
Material Enhancements with Additives
You can add some additives to material to enhance its properties.
For example, glass fibers increase part strength and wear resistance, flame retardants or UV stabilizers improve safety and durability. In addition, composites enhance impact resistance for demanding environments.
These enhancements tailor materials to specific functions, like automotive brackets. Manufacturers select additives for process optimization performance without changing the molding process.
Multiple Color Options
Coloring options include masterbatches and pre-colored resins, allowing for vibrant aesthetics.
You can also customise consumer products using liquid colorants or salt-and-pepper blends. You can even go for clear or opaque finishes which suits various designs like transparent lids.
Manufacturers align colors with brand needs which enhances appeal of the product. This flexibility supports diverse visual requirements across industries.
Minimal Waste
Compared to tradiitonal methods, injection molding creates less unused or waste plastic products. Excess plastic from sprues and runners gets reground and recycled.
As a result, material costs and environmental impact is reduced greatly.
Additionally, efficient mold designs further cut waste during production. This eco-friendly approach allows manufacturers to achieve sustainable operations.
Low Labor Cost
Automation handles pellet feeding, injection, and part ejection, reducing human effort. One operator can oversee multiple injection molding machines, ensuring that the manufacturing process produces a consistent output.
This lowers labor expenses significantly while only requiring a higher initial cost. Advanced robotics enhance efficiency by streamlining tasks like mold release and many other manufacturing processes. In this way, manufacturers save costs while maintaining high-quality standards.
Freedom in Design
The injection molding process supports complex geometries with features like bosses or living hinges.
High-pressure injection fills intricate molds, allowing detailing like wall thicknesses, sharp edges, draft angles and optimised gate position in shapes. Optimized gate and vent placements ensure precision.
This flexibility allows unique designs, unlike restrictive metal fabrication. Manufacturers create innovative parts with minimal constraints.
Lightweight and Durable Parts
Modern thermoplastics produce lightweight parts that rival metals in strength. Materials like polypropylene reduce weight in applications like automotive components.
High-performance blends ensure durability in harsh conditions. These parts lower emissions in vehicles by cutting overall weight.
As a result, manufacturers achieve efficiency without sacrificing performance.
Smooth Surface Finishes
The plastic parts often result in polished surfaces with no empty space and do not require extra finishing. Special mold textures add patterns or logos during injection moulding. Cooling lines ensure even temperature control, improving finish quality for products like electronics.
This eliminates secondary processing, saving time for the overall production process.
Consistent finishes enhance aesthetics, like on consumer electronics other plastics. Manufacturers deliver ready-to-use parts with minimal post-production.
Multi-Material Overmolding
Overmolding combines multiple materials or colors in a single part. Sequential injections bond soft grips to rigid bases, enhancing functionality. This creates ergonomic tools or aesthetic products.
Compatible materials ensure strong adhesion, avoiding defects. This versatile technique adds more value in the injection process.
Scalability
Injection molding suits both prototyping and mass production. High-volume runs mold costs, lowering expenses. The process adapts to small or large batches with consistent quality.
Manufacturers scale efficiently and meet both small and large projects. This flexibility supports businesses from startups to global brands.
Disadvantages Of Plastic Injection Molding
Plastic injection molding is a valuable scientific molding process, however, every manufacturing process comes with its own set of advantages and disadvantages. Its challenges may impact project timelines and budgets, negatively affecting production runs.
High Initial Tooling Costs
Custom molds require a higher initial cost to set up. Steel molds for high-volume runs cost thousands, while even simple molds start at $2,000–$5,000. These expenses burden small or low-volume projects.
Even though aluminum molds cost less, they still demand substantial funding and manufacturers face financial strain before production begins.
Long Lead Times for Tooling
Creating molds, especially steel ones, takes weeks or months. The machining time is also extended when you’re making complex designs. These initial lead times delay project timelines, impacting market entry.
You can use quick tooling options like aluminum which reduces wait times but is still slower than other alternatives. Manufacturers must also plan extensively to avoid setbacks.
Design Constraints
Mold designs limit part aesthetics and functionality. Gate and vent placements may leave visible marks or affect strength. Modifying molds after creation is costly and difficult. Weld lines or wall thickness issues can cause defects. Manufacturers must optimize designs early to ensure quality.
Inefficiency for Low-Volume Runs
High mold costs make low-volume production uneconomical.
This is because producing plastic parts in small batches cannot amortize tooling expenses, raising per-part costs. Alternatives like 3D printing or CNC machining suit limited runs better.
Manufacturers struggle to justify injection molding for prototypes or niche products. This restricts flexibility for small-scale projects.
Materials Used in Injection Molding
Injection molding uses a variety of different materials. Each material is chosen for specific properties like strength, flexibility, or heat resistance. Below is a detailed overview of the primary materials, their characteristics, and applications, organized by type.
Thermoplastics
Thermoplastics are widely used due to their ability to be melted and reshaped repeatedly. Some common thermoplastic materials include:
ABS (Acrylonitrile Butadiene Styrene): ABS has great toughness, impact resistance, and heat tolerance. It’s used in automotive dashboards, phone cases, and LEGO bricks for its durability and smooth finish.

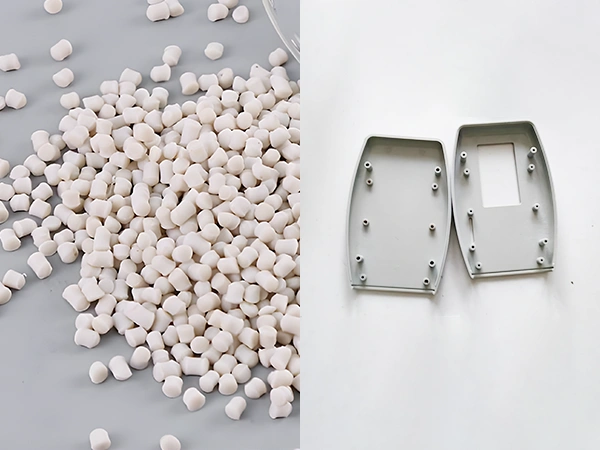

Polypropylene (PP): Polypropylene is lightweight, flexible, and resistant to chemicals and moisture. It’s common in food containers, syringes, and car bumpers due to its low cost and recyclability.
Nylon (Polyamide): Nylon provides strength, wear resistance, and thermal stability. It’s found in gears, bearings, and fasteners, especially in automotive and industrial applications.
Polycarbonate (PC): Polycarbonate offers transparency, high impact resistance, and temperature tolerance. It’s used in safety helmets, bulletproof glass, and lenses for its clarity and strength.
Polyethylene (PE): Polyethylene is chemically resistant and flexible. High-density versions (HDPE) make bottles and pipes, while low-density (LDPE) is used for packaging films and bags.
As a result, these abilities make thermoplastics ideal for mass production.
Thermosets
Thermosets is another widely used material that hardens permanently after heating.
Epoxy: Epoxy excels in adhesion, chemical resistance, and insulation. It’s used in circuit boards and aerospace composites, maintaining shape under high heat.
Phenolic: Phenolic resins resist heat and remain rigid, making them ideal for brake components, electrical insulators, and kitchenware handles.
Melamine: Melamine is hard and durable, used in dinnerware, laminates, and fire-resistant fabrics for its scratch resistance and lasting finish.
As a result, thermosets are suited to applications needing rigidity and heat resistance.
Elastomers
Elastomers are elastic materials that return to shape after stretching.
Thermoplastic Elastomers (TPE)
TPEs blend rubber-like flexibility with thermoplastic processing. They’re used in seals, gaskets, and soft grips, plus medical tubing for biocompatibility.Silicone Rubber
Silicone rubber resists heat and stays flexible, appearing in medical implants, kitchen utensils, and high-temperature seals.Polyurethane (PU)
Polyurethane offers abrasion resistance and flexibility, used in shoe soles, suspension bushings, and industrial wheels for durability.
As a result, elastomers are perfect for flexible components.
Specialty Materials
Specialty materials meet unique needs like biodegradability or extreme performance.
Polylactic Acid (PLA)
PLA, biodegradable and plant-based, is used in eco-friendly packaging, disposable cutlery, and dissolvable implants.Polyetheretherketone (PEEK)
PEEK provides exceptional strength and chemical resistance, used in aerospace parts, medical implants, and semiconductors for harsh environments.
These materials enable injection molding to serve diverse industries, from consumer goods to high-tech applications. Selecting the right material ensures optimal performance and cost-efficiency.
Conclusion
Plastic injection molding excels in producing precise, high-volume parts for industries like automotive and medical. Its speed, material versatility, and low per-part costs drive efficiency.
However, high tooling costs and design limits challenge small-scale projects. Manufacturers must weigh these strengths and constraints carefully.
This process thrives when planned strategically for large-scale production needs.
FAQs
What are the benefits of plastic injection molding?
Plastic injection molding produces precise, complex parts quickly with low per-part costs. It supports diverse materials, minimizes waste, and delivers smooth finishes, ideal for high-volume production.
What are the pros and cons of injection molding?
Pros: High precision, fast cycles, low costs for large runs, material versatility, and minimal waste.
Cons: High tooling costs, long lead times, design constraints, and inefficiency for low-volume runs.
Why is injection molding preferred?
Injection molding is preferred for its ability to produce large volumes of uniform, intricate parts efficiently. Its automation, material options, and cost-effectiveness suit industries like automotive and medical.
Which of the following is a primary advantage of injection molding?
High precision and repeatability stand out as primary advantages. The process ensures identical, detailed parts across thousands of units, perfect for mass production.
What are the disadvantages of mold?
Molds involve high initial costs, often thousands of dollars, and long lead times for creation. Design constraints, like gate placement, and inefficiency for small runs limit their versatility.
