Mechanical fasteners are small devices that are usually used to mechanically fasten two or more objects together. We have various types of mechanical fasteners and they can can be divided into two main category which are non-permanent and permanent fasteners.
The fastener is important because it improves both precision and durability outlook in mechanical systems. Misalignment in many industrial processes even in very minute degrees can bring up a lot of problems which may result in defective products or mechanical failure. This risk is eliminated by the application of pin fasteners, guaranteeing extra fine alignment.
Pins insulate assembly and operation by serving as a dependable starting point, making it easy to align parts without using your hands. Moreover, pin fastener is used in systems where misaligned parts can cause serious accidents like in heavy machinery or precision tools and this is very important because alignment is highly critical to safety.
This guide will provide readers with a technical knowledge on how to use pins and other fasteners in mechanical constructions, lay out the advantages of a pin fastener, the different types of pins and their relevance to mechanical assemblies.
What are Pin Fasteners?
They are non-threaded fasteners used to align and assemble parts in industrial machines, vehicles, electronics, architecture, and many other applications. Fastening pins pre-date threaded fasteners like screws and bolts by many centuries as the technology to efficiently create screw threads developed much later.
The fastener plays a vital role in mechanical assemblies by securely joining two or more parts while allowing for some degree of movement or alignment. These fasteners, typically made from steel, metal or plastic, provide several key benefits,
some of which are:
#1. Alignment
Pins help ensure precise alignment of parts, which is essential for proper functioning of mechanical systems.
#2. Load Distribution
They share and distribute loads across the machine reducing stress concentrations that could lead to failure of the shaft.
#3. Ease of Assembly and Disassembly
A fastener simplifies the assembly process, allowing for quick installation and removal without the need for complicated tools, facilitating maintenance and repairs.
#4. Retention
Some other pins manufacturers includes some features in their designs like grooves or heads that can retain the pin securely in place, preventing accidental dislodgement during operation.
#5. Versatility
Available in various types such as friction pins, dowel pins, and cotter pins, they cater to different applications and requirements in mechanical design.
Mechanical Characteristics of Pin Fasteners
#1. Material
Pins can be made from several materials, including metals for example; steel, stainless steel for steel pins, aluminum and plastics. The type of material impacts on the strength, corrosion resistance, and weight of the pin.
#2. Shape
Most pins have a cylindrical shape, but they also come in other shapes and designs depending on the purpose of the pin. Common variations include taper pins, dowel pins, and clevis pins.
#3.Diameter and Length
Pins come in various diameters and lengths to accommodate different assembly requirements. This gives allowance for custom assembling to fit specific applications.
#4.Finish
Many pin fasteners feature surface treatments or coatings to enhance functionality, such as anti-corrosion finishes for instance; zinc plating, anodizing or platings that reduce friction.
#5.Head Design
Some pin fasteners have heads for example; cotter pins or other external features that aid in assembly and retention, while others are designed to be flush with the surface just like dowel pins.
#6.Tolerance and Precision
Pins are typically manufactured to specific tolerances level, which ensures fit and functionality in precision assemblies.
#7.Load Bearing Capacity
The ability of a pin to withstand axial loads differs based on its material, diameter, and shape design. This characteristic is critical for ensuring the precision of the angle.
#8.Ease of Installation and Removal
Many pin fasteners are designed for straightforward installation and removal, making them easy to use for assembly and maintenance processes.
These characteristics contribute to the effectiveness and versatility of pin fasteners in mechanical assemblies across various industries.
Methods of Manufacturing Pin Fasteners
Pin fasteners are basic components widely used in various assembling industries for securing and aligning parts. Each method has its unique characteristics and approved applications.
Their manufacturing processes vary depending on the type of pin required, the materials used, and the intended use. Choosing the right method based on use and the relevant material characteristics is very vital. Here are some of the common methods for manufacturing them;
1.CNC Machining
This is a high-precision, high-efficiency manufacturing method widely used in the production of pin fasteners. By programming and controlling machine tools, various shapes and sizes of standard pin can be precisely machined.
The advantages of CNC machining include high machining accuracy, high production efficiency, and strong adaptability, meeting the requirements for complex shapes and precise tolerances.
2.Stamping

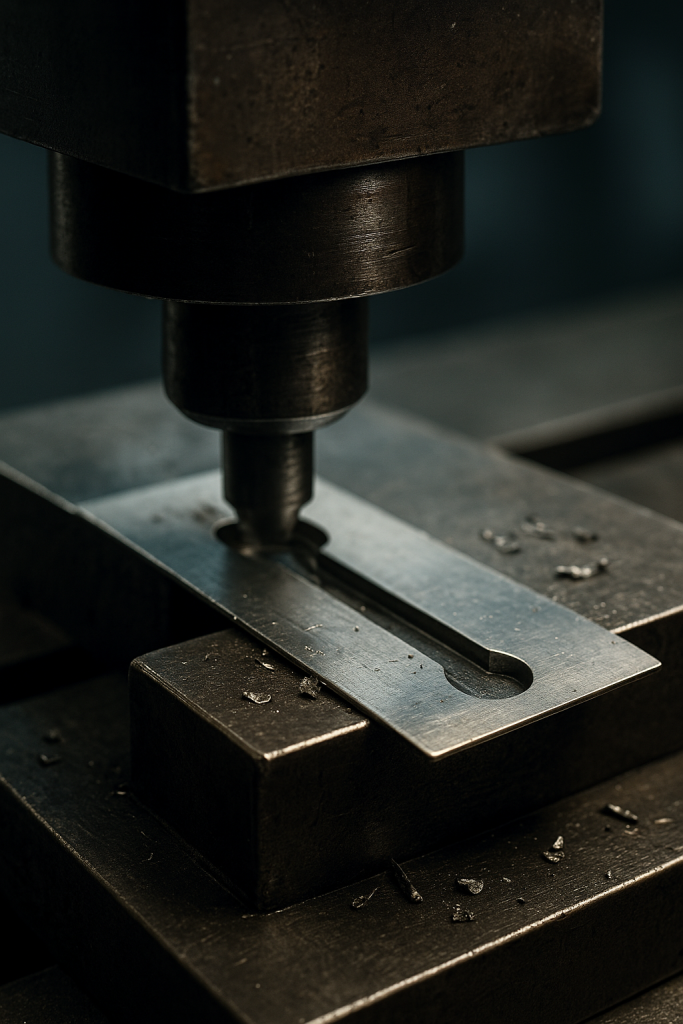

This methodology is a cold-working process that uses molds to deform metal sheets plastically. During the stamping process, metal sheets are plastically deformed under the action of molds to form the required pin type. Stamping has the advantages of high production efficiency and low cost, suitable for mass production.
3.Forging
This process in particular exposes metal materials to heating and mechanical force. The forging process can produce pin fasteners with complex shapes and high strength. Forgings have dense structures and good mechanical properties, suitable for assemblies requiring high load-bearing capacity.
Generally, high-precision pins like dowel or locating pins are machined for accuracy, while general-purpose pins like split or cotter pins are mass-produced using stamping or forging methods.
Common Materials for Making Pins
When it comes to manufacturing pins, a diverse range of materials is used, each offering unique charecteristics and chemical properties tailored for specific applications. The most common materials for pin production include the following:
1.Brass
As an alloy of copper and zinc, brass is known for its corrosive resistant nature and aesthetic appeal, Brass pins are used in decorative and electrical connection applications, with their custom golden appearance they enhance product aesthetics.
2.Aluminum
This material is lightweight with good thermal and electrical conductivity which is also resistant to corrosion, aluminum pins are used in various industries for their durability. Aluminum pins are used typically for applications requiring weight reduction or heat conduction, such as radiator components and electronic devices.
3.Steel
This is a wear resistance material used for pins requiring high strength and performance while maintaining cost effectiveness. Different types of steel (such as carbon steel and alloy steel) can be selected based on specific needs to meet different strength and corrosion resistance requirements.
4.Stainless Steel
Combining strength with corrosion resistance, stainless steel is widely used in making pins, especially in humid and corrosive environments. Stainless steel pins are not only durable and resistant to rust and corrosion, but also possess extended service lifespan.
5.Titanium
Reputably known for its exceptional strength-to-weight ratio and wear resistance, titanium pins have excellent physical properties, unique metallic radiant composition and biocompatibility widely used in medical, aerospace and other related fields.
Types of Pins and their Uses
There are different types of pins. You can choose any form of pin like metal pins,silk pins, or quilting pins, based on the purpose you need it to serve . But first, here are the types of pin you can always choose from to serve your need.
1.Cotter Pin
Cotter pins are cylindrical pins with split ends, mainly used to lock bolts, nuts to keep parts together in a machine to keep them from loosening. Their design allows them to lock through deformation after insertion, enhancing the stability of the connection.
2.Dowel Pin
Dowel pins also known as straight pins are made to keep machine to hold parts properly lined up or used as pivot shaft. They are typical for their precise dimensional shapes that ensure alignments between machine parts.
When made from high temperature alloys they can withstand high temperatures. In CNC machining, dowel pins are often used in the manufacture of precision molds and fixtures.
3.Lynch Pin
Lynch pins, also known as safety pins or quick-release pins, are designed for quick connection and disconnection. Lynch pins help you adjust components of equipment easily and hold them fast from falling or scattering by inserting the clip through an axle. They usually have an enlarged head and an easy-to-operate tail, facilitating manual or tool operation.
4.Spring Pin
Spring pins also known as groove pins are cylindrical with internal springs that expand outward to aid alignment and secure different parts. These spring types are made from rolled iron based metal strips and used in various parts assemblies. The different types includes; slotted spring pins, coiled spring pins and others.
5.Wire Lock Pin
Wire lock pins are slender pins made of wire, they are universally essential in many industries and are a suitable means of adjusting or removing accessories on a piece of equipment.
These type are the perfect combination of cotter pins and clevis pins. Wire lock pins come with a steel material design and are available in common retainer measurements and standard lengths.
6.Clevis Pin

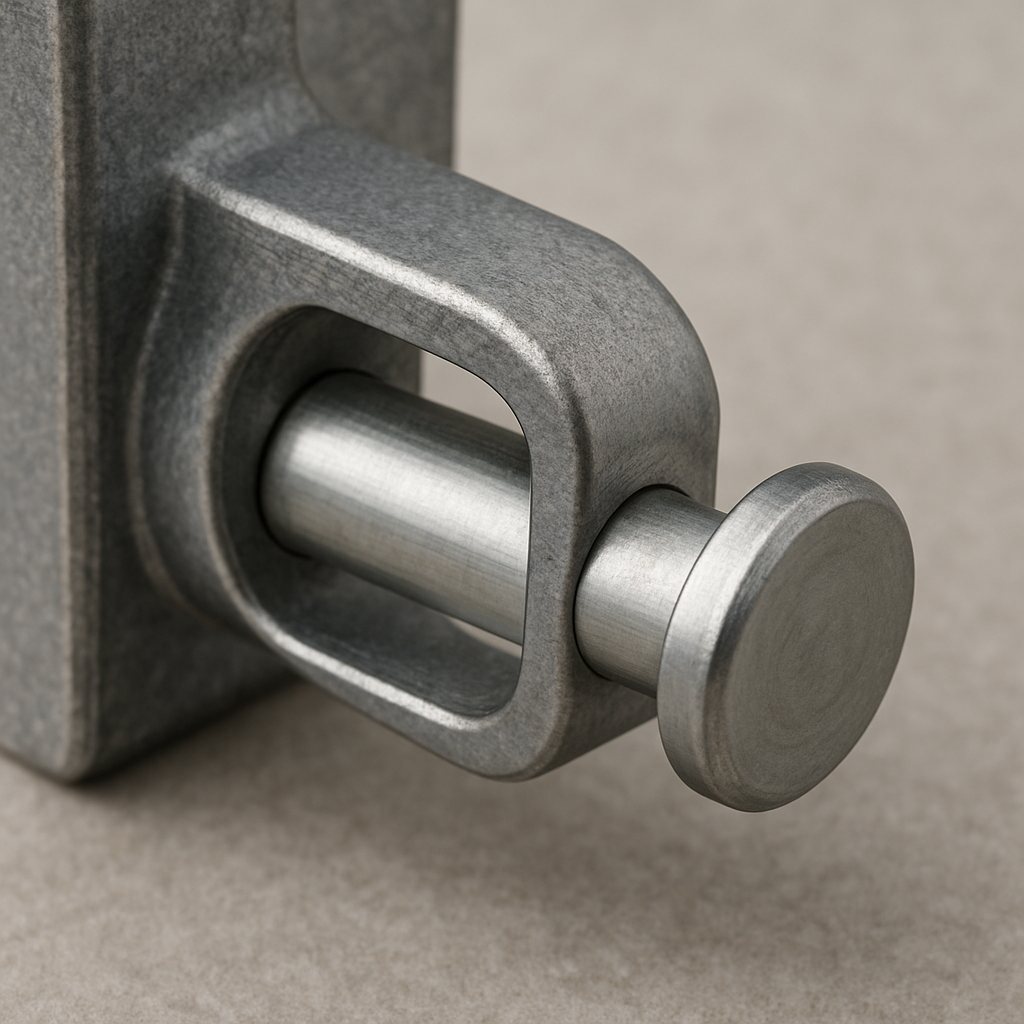

Clevis pins are special pins usually used to connect U-clamps or other similar-shaped parts. They have specific shapes and sizes to ensure stable and reliable connections. They are commonly used in machine parts in the marine, automotive, construction, wood and agriculture industries.
7.L-handle Pin
L-handle pins are made with L-shaped handles for easy manual operation. They are locking pin types designed for securing parts of equipment easily.
They are commonly used in situations where parts are frequently inserted and removed such as mold changes or equipment adjustments which is why they are easy to install and remove with the ball-locking mechanism enabling safety, better retention, and reliability.
8.The Retractable Spring Latch Pin
Retractable spring latch pins are made to have unique characteristics ideal for high-stress conditions thanks to the secure latch that holds the pin in place. Possessing unique characteristics of use in situations requiring adjustable length or adaptability to different hole diameters. This pin is easy to remove or install.
It comes with an iron steel case with zinc plating while the knob is made from propylene. They meet different connection needs through a retractable mechanism while securely enhancing connection flexibility and adaptability.
9.Clip Pins
They have a clamping function, typically used to hold pipes, cables, or other elongated parts. They fix parts in a predetermined position through clamping force, ensuring stability.
